Advanced Implant Surgery for Severe Bone Loss | Atrophic Maxilla Case

When Dental Implants Are Said to Be “Not Possible”

One of the most common reasons patients are denied dental implants is severe bone loss in the upper jaw (atrophic maxilla).
In many clinics, this diagnosis immediately ends the conversation.

However, modern implant dentistry is no longer limited by bone loss alone. With the right diagnosis, planning, technology, and surgical experience, even severely atrophic maxilla cases can often be rehabilitated predictably.

This blog documents a real, complex implant case where dental implants were considered impossible—until advanced planning and guided surgery changed the outcome.

Case Overview: A Challenging Yet Rewarding Milestone

This case represents one of the most challenging and professionally rewarding milestones in my journey as an implant surgeon.

It highlights how:

• Advanced CBCT-based diagnosis

• Digital implant planning

• Guided implant surgery

• Sinus lift and bone augmentation

can restore fixed teeth in patients who have lost hope of long-term solutions.

Patient Background: Multiple Rejections and Lost Hope

The patient, a middle-aged female from Warangal, Telangana, is a state government employee who approached our clinic after consulting multiple dental centres across Hyderabad, including a leading corporate hospital.

Due to severely compromised bone in the upper jaw, implant placement had been ruled out everywhere she visited.

She presented to us:

• Emotionally distressed

• Frustrated by repeated rejections

• Seeking a fixed, long-term solution rather than removable dentures

Her primary concern was regaining function, confidence, and quality of life.

Initial Evaluation and Diagnosis

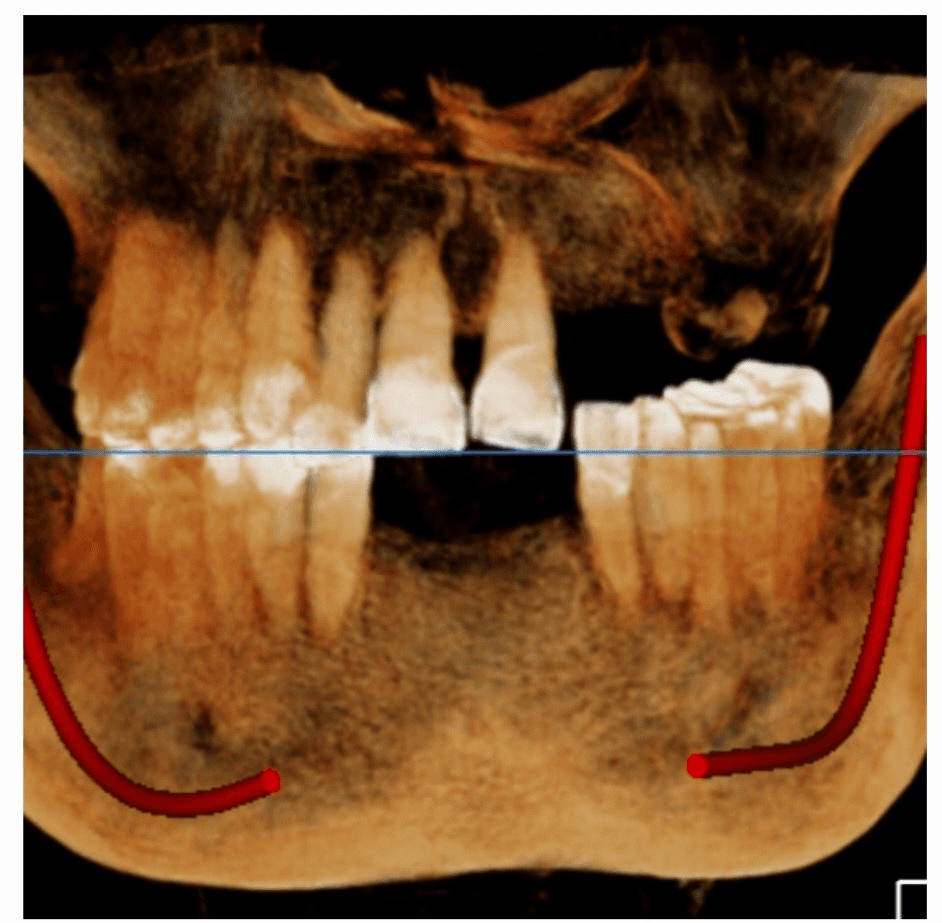

A comprehensive clinical evaluation was performed, followed by a CBCT (Cone Beam Computed Tomography) scan.

The CBCT scan allowed us to carefully assess:

• Bone volume and density

• Sinus anatomy

• Residual ridge height

• Critical anatomical landmarks

The findings confirmed severe bone atrophy in the left posterior maxilla, with extremely deficient bone height—making conventional implant placement unsafe.

Instead of rejecting the case, we focused on redefining the treatment approach.

Treatment Planning: Where the Case Was Truly Won

The success of this case was determined long before surgery.

Detailed discussions were held within our implant team, and we collaborated closely with the implant manufacturer in South Korea to design a customised, case-specific treatment plan.

Key considerations included:

• Patient’s age and bone physiology

• Travel and visit constraints

• Long-term implant prognosis

• Prosthetically driven implant positioning

Given the complexity, we deliberately avoided freehand implant placement and opted for guided implant surgery combined with a sinus lift procedure.

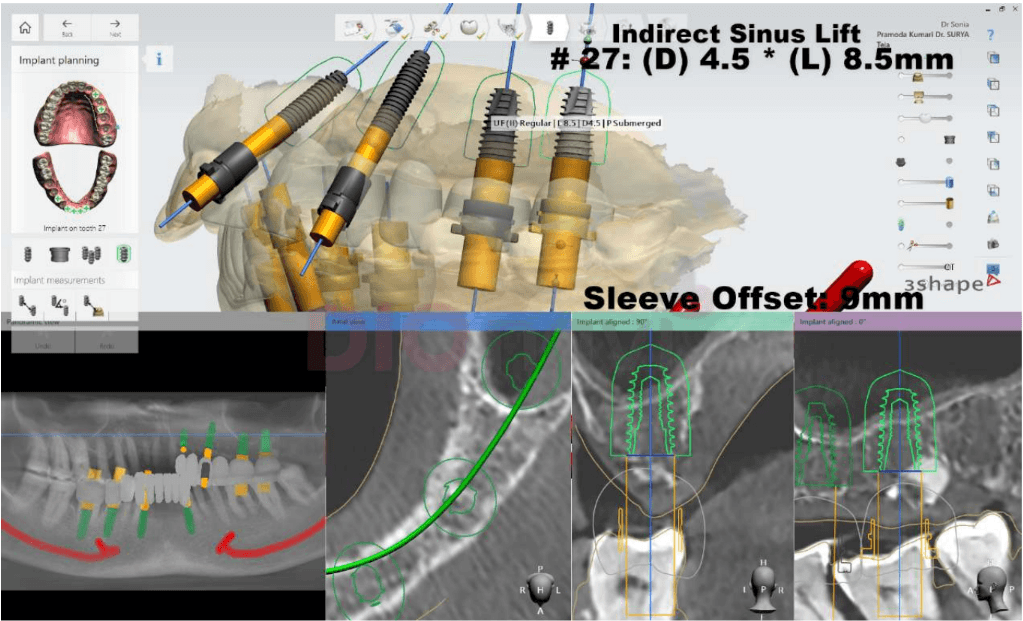

A digital plan was created and translated clinically using a custom-fabricated surgical guide.

Guided Implant Surgery: Why Precision Matters in Atrophic Bone

In severely atrophic maxilla cases, millimetres matter.

Guided implant surgery offers:

• Precise control over implant angulation and depth

• Safer navigation around sinus and anatomical structures

• Prosthetically driven implant positioning

• Reduced surgical risk and increased predictability

This approach was critical in achieving a safe and stable outcome in compromised bone conditions.

The Day of Surgery: Precision in Execution

On the day of surgery, a carefully selected armamentarium was prepared, including:

• Custom surgical guide

• Guided implant surgery kits

• Sinus drill kit

• Hydraulic sinus lifter system

• Premium bone graft material (Novabone putty)

• Precisely selected implant systems

The surgical guide was verified intraorally to ensure a stable, wobble-free fit. Implant positions and vertical dimensions were reconfirmed before proceeding.

Sequential drilling was carried out following navigation-guided protocols, ensuring controlled and accurate implant placement.

Sinus Lift Procedure: The Most Critical Phase

The most challenging aspect of this case was the sinus lift procedure.

The primary risk in such cases is perforation of the Schneiderian membrane, which can compromise graft stability and implant success.

Using an indirect hydraulic sinus lift technique, the sinus membrane was gently elevated in a controlled and predictable manner. Advanced drilling protocols significantly improved safety and precision.

Premium bone graft material was placed to augment the sinus floor and create sufficient bone volume for implant stability.

Post-operative radiographs confirmed:

• Excellent graft placement

• Proper implant positioning

• Successful sinus membrane elevation

Clinical Significance of This Case

This case reinforces several important truths in modern implant dentistry:

• Severe bone loss is not an automatic contraindication for implants

• Advanced diagnostics and planning often matter more than surgical difficulty

• Guided surgery significantly improves outcomes in complex cases

• Experience and technology must work together—not independently

Patients who are told “implants are not possible” often benefit from a second opinion at a specialised implant centre.

Key Learnings from This Case

• Planning determines success more than execution

• CBCT-based diagnosis is non-negotiable in complex cases

• Guided surgery improves safety, accuracy, and predictability

• Sinus lift procedures, when planned correctly, can be highly successful

• Patient trust grows when decisions are explained transparently

Final Thoughts: When Expertise Makes the Difference

Advanced implant surgery in a severely atrophic maxilla demands:

• Experience

• Precision

• Digital planning

• Respect for biology

With the right approach, even patients once considered untreatable can regain fixed teeth, comfort, and confidence.

Modern implant dentistry is not about placing implants—it is about placing the right implants, in the right position, for the right patient, at the right time.

Frequently Asked Questions – Implants in Severe Bone Loss

Are dental implants possible with severe upper jaw bone loss?

Yes. With advanced techniques such as sinus lift procedures, bone grafting, and guided implant surgery, many patients with severe bone loss can still receive dental implants after proper evaluation.

Is sinus lift surgery safe?

When performed by an experienced implant surgeon using modern techniques and proper planning, sinus lift procedures are safe and predictable.

Does guided implant surgery improve success?

Yes. Guided implant surgery improves accuracy, reduces surgical risk, and enhances long-term implant stability—especially in complex cases.

Should I seek a second opinion if I’m told implants are not possible?

Absolutely. Many patients benefit from a second opinion at clinics equipped with advanced diagnostics and implant expertise.
